Features

  • Max sound output
    120 db (A) / 1 m
  • IP66 rated as standard
  • Strobe available in 5 Joules
  • 32 selectable tones meeting international regulations
  • Stainless steel fixings
  • 2 stage alarm
  • Independently selectable second stage
  • Lens available in six different colours
  • Low current consumption

Material

  • Flame retardant ABS enclosure

Approvals & Conformities

Approvals & Conformities

Description

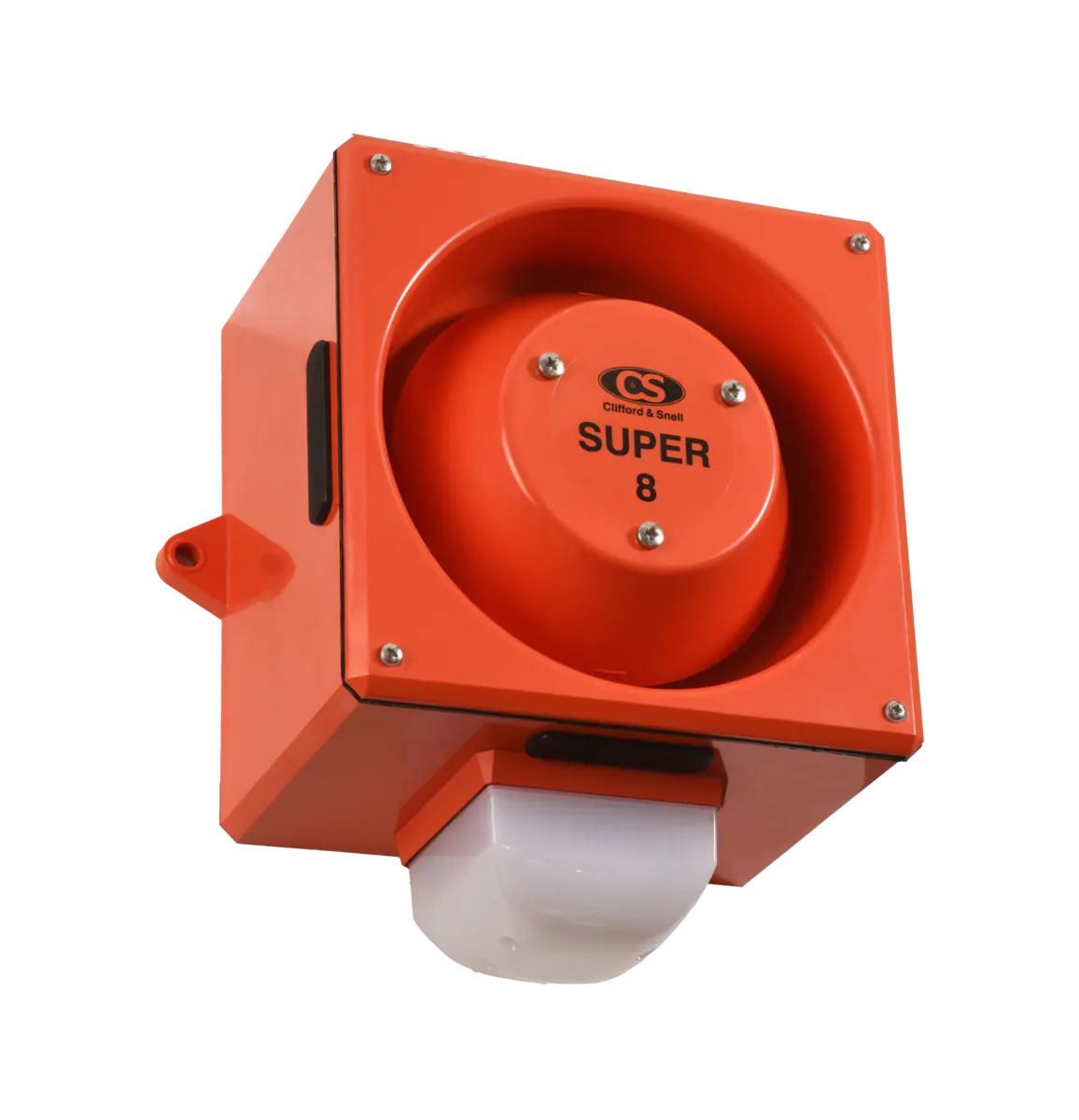

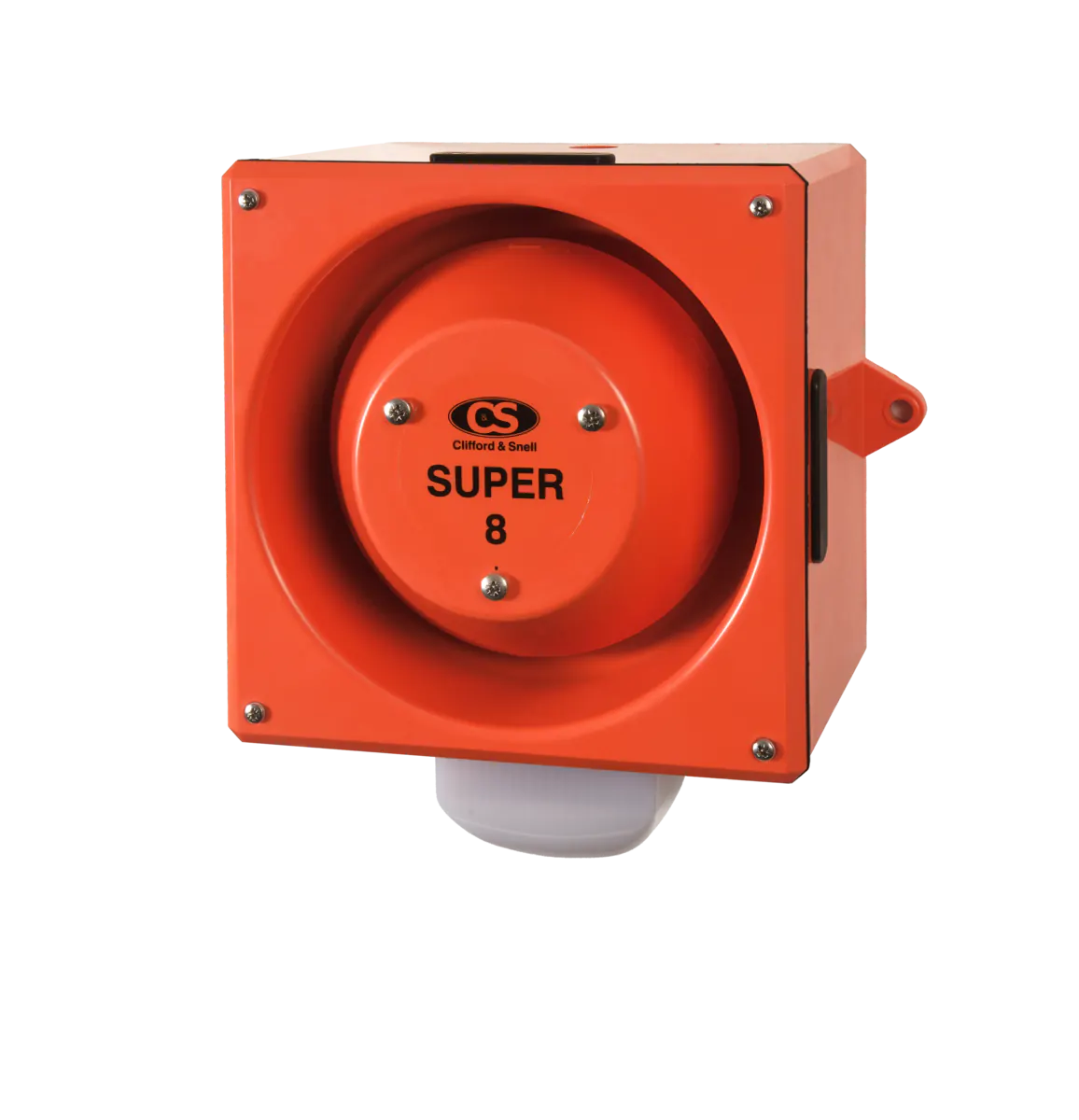

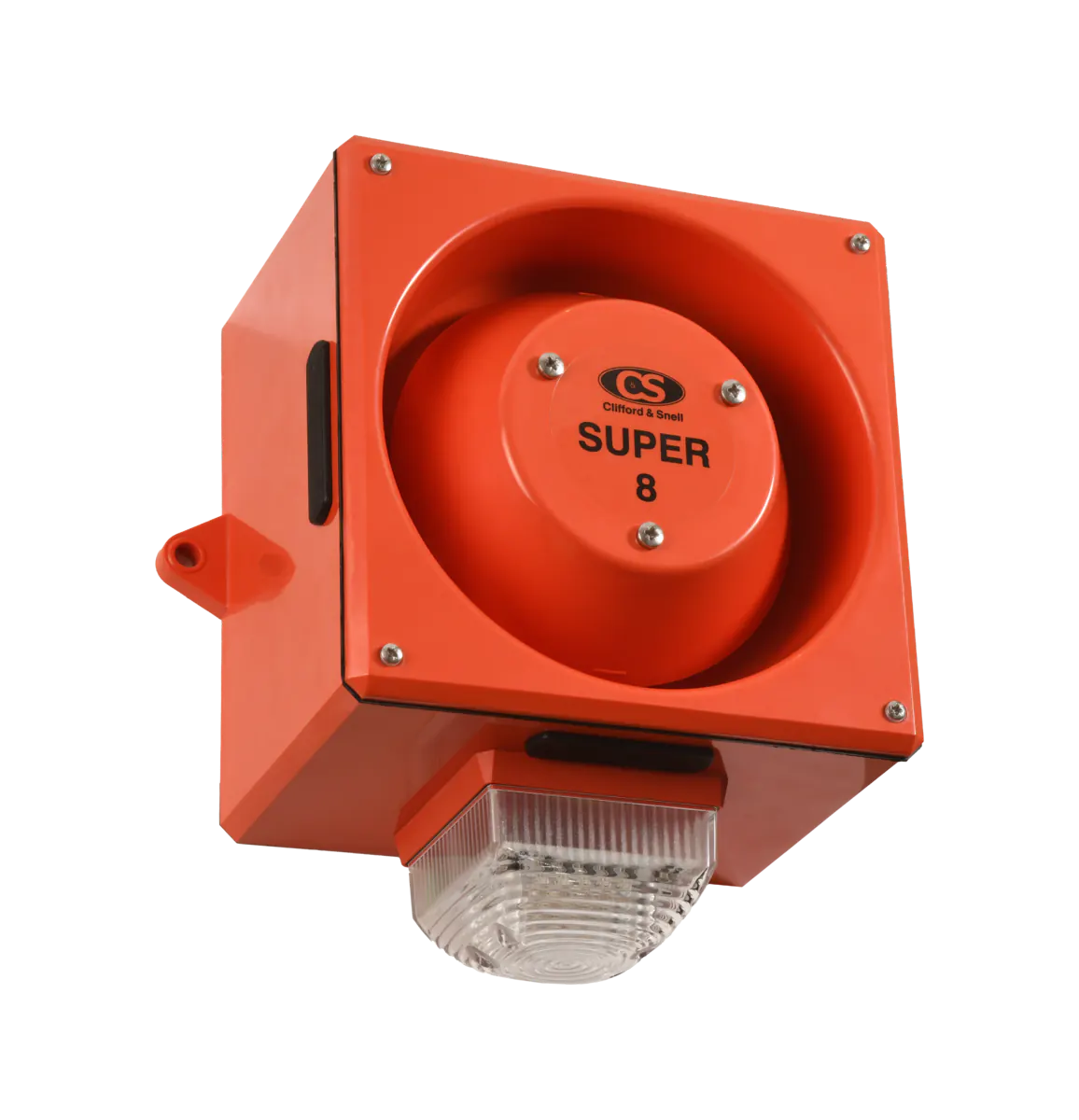

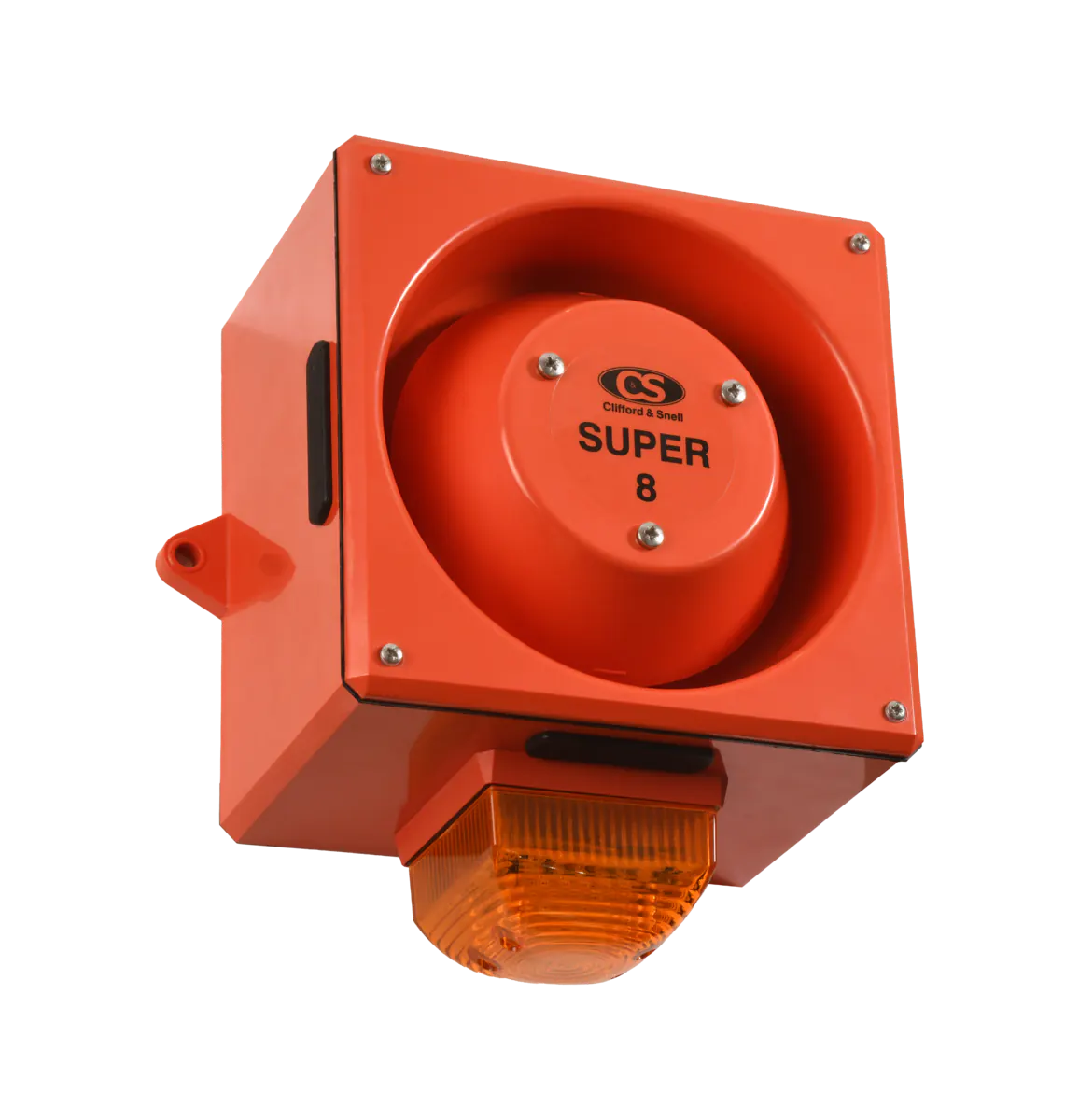

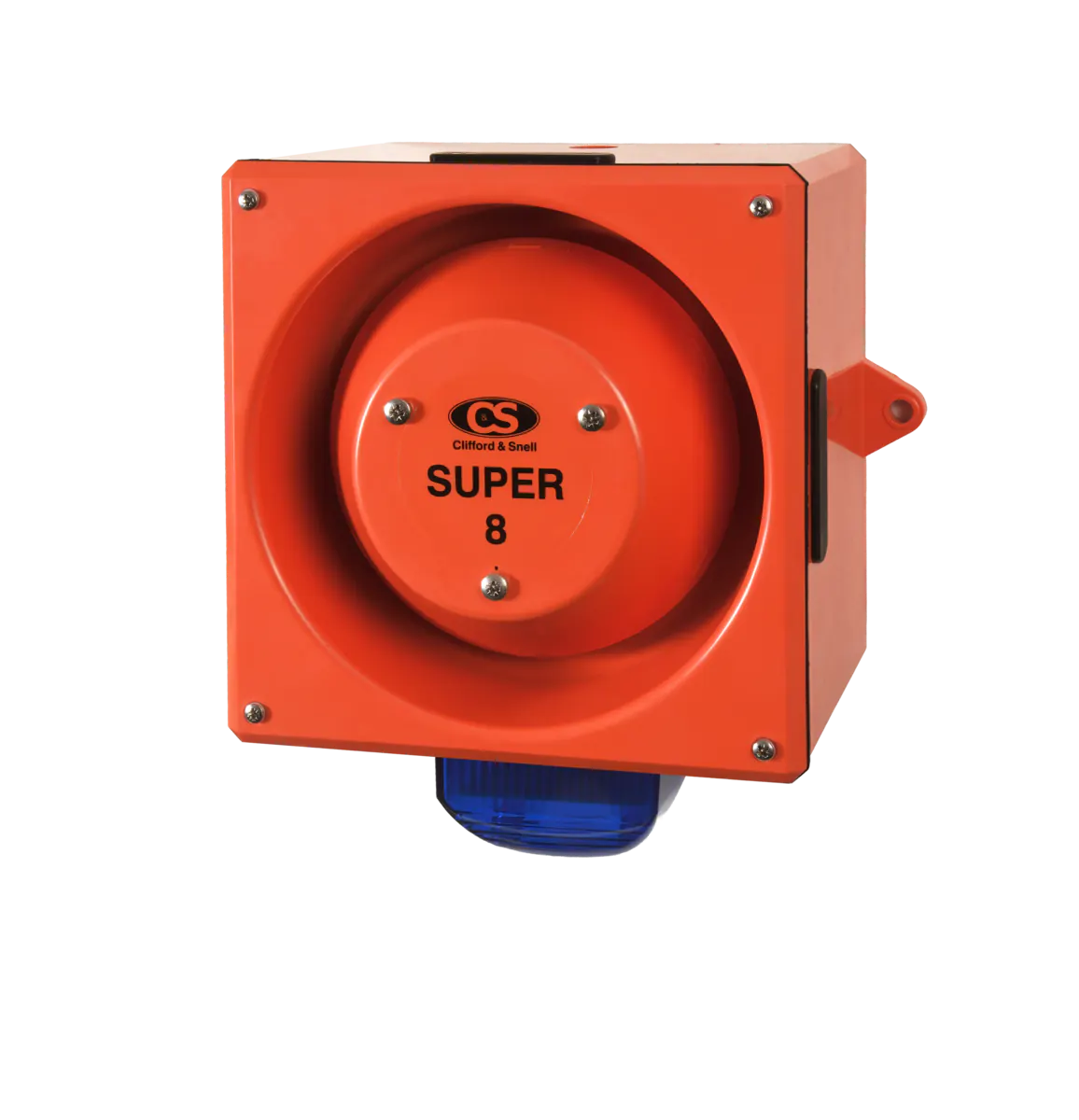

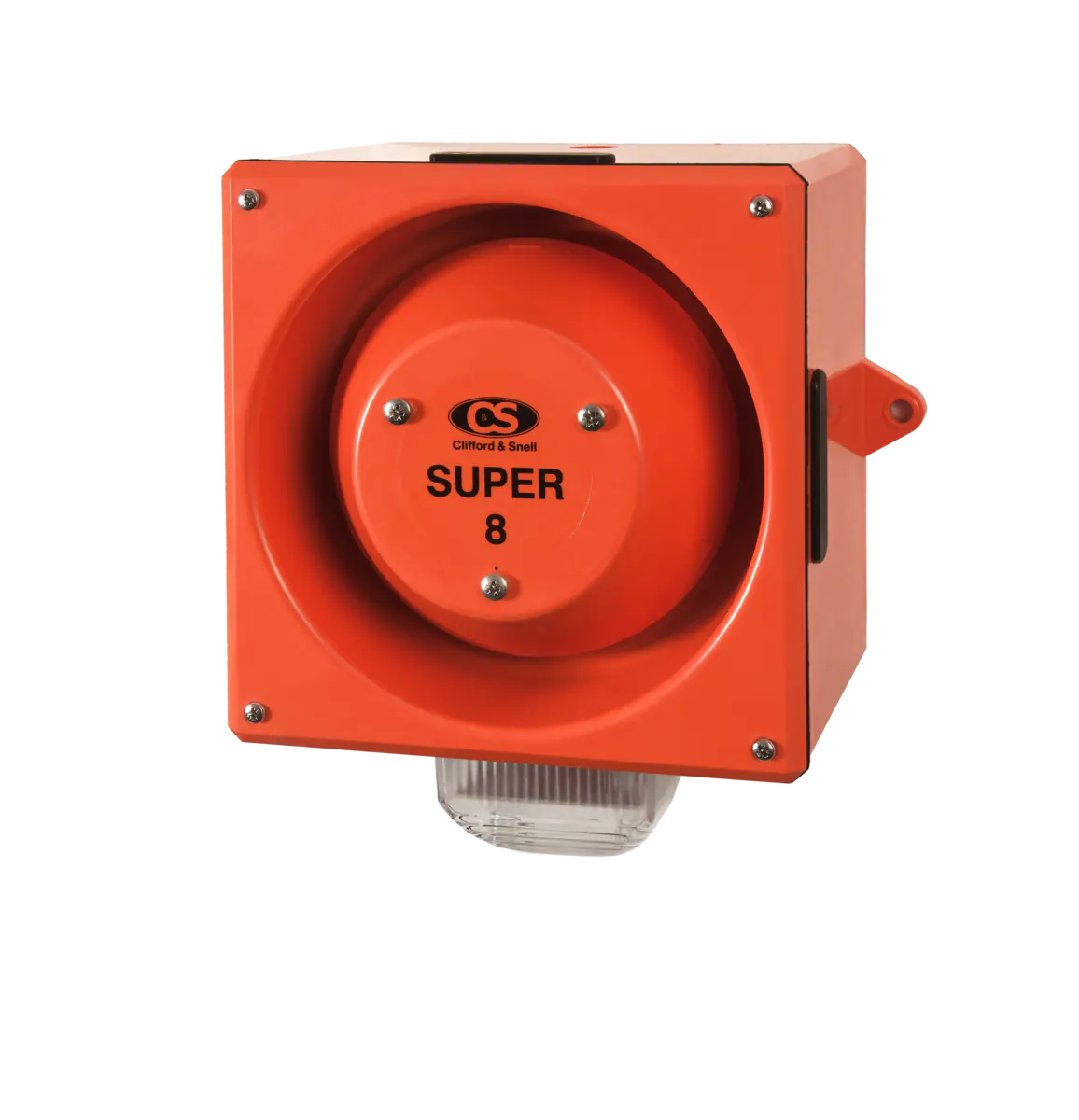

YL80 Super

Industrial Combination Signal 120 dB (A) / 5 Joule

Yodalight range high output multi-purpose audible and visual signalling device designed for use in industrial applications.

VersionEnclosure
Colour
Flash
Energy
Rated
Operational
Voltage
Lens
Colour
Order numberArt. No.Weight
(kg)
YL80 Sounder/
Strobe
combination
BS EN 54 Pt:3
UKCA, CE &
MED
Red Flame
(RF)
RAL 2002

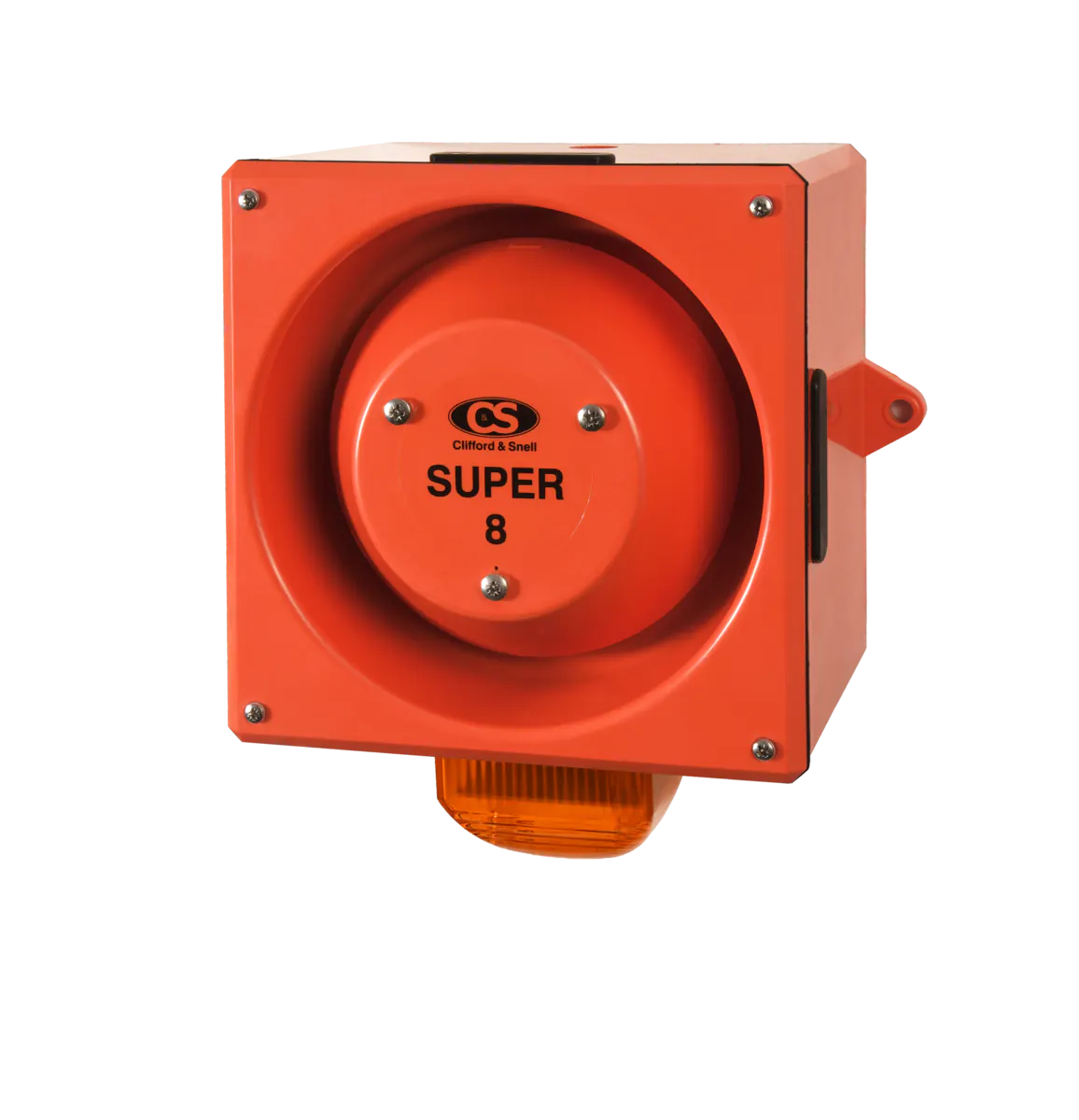

5 J24vDC ---AmberYL80/D50/A/RF/SU/WR2046753.210

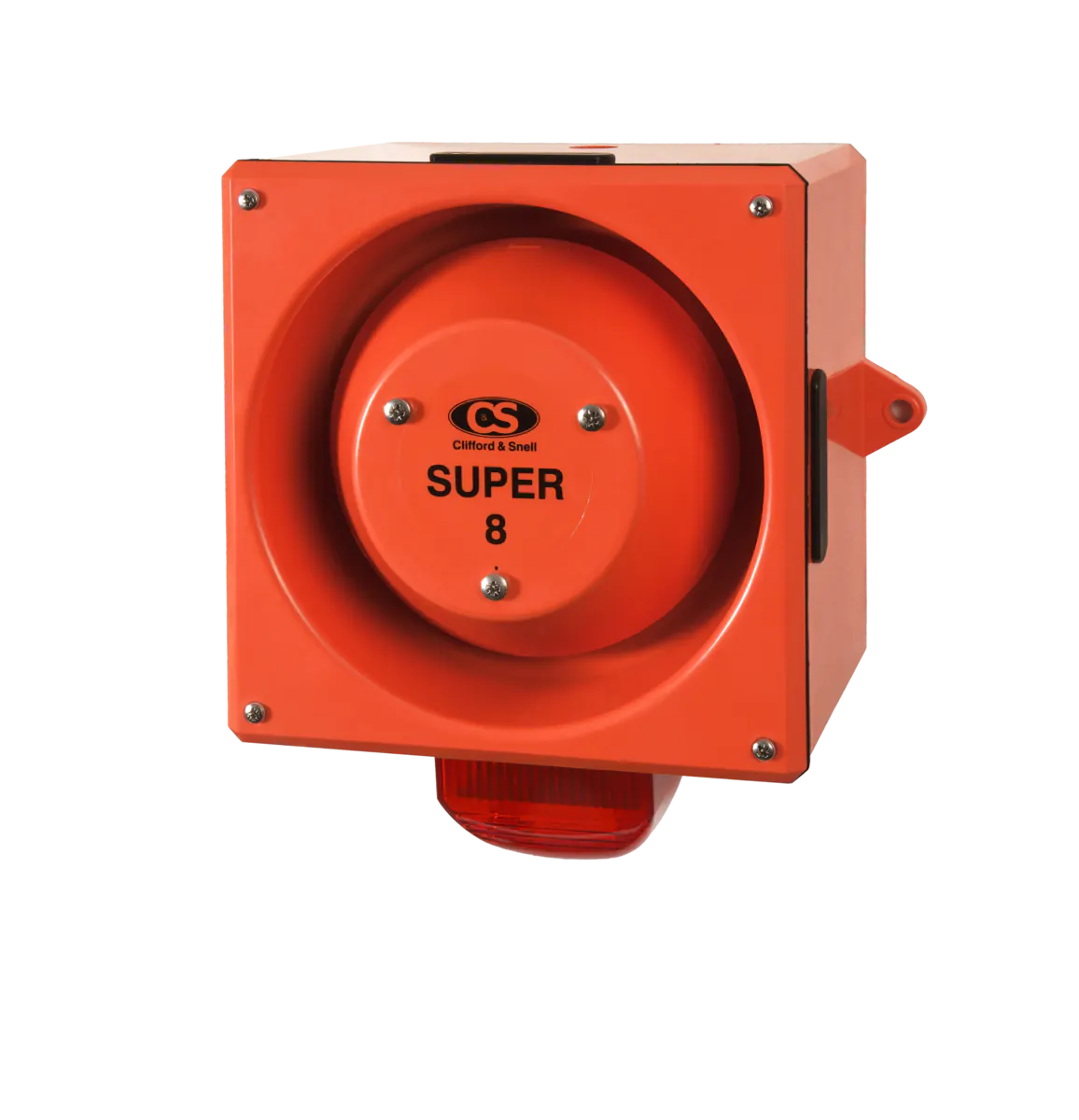

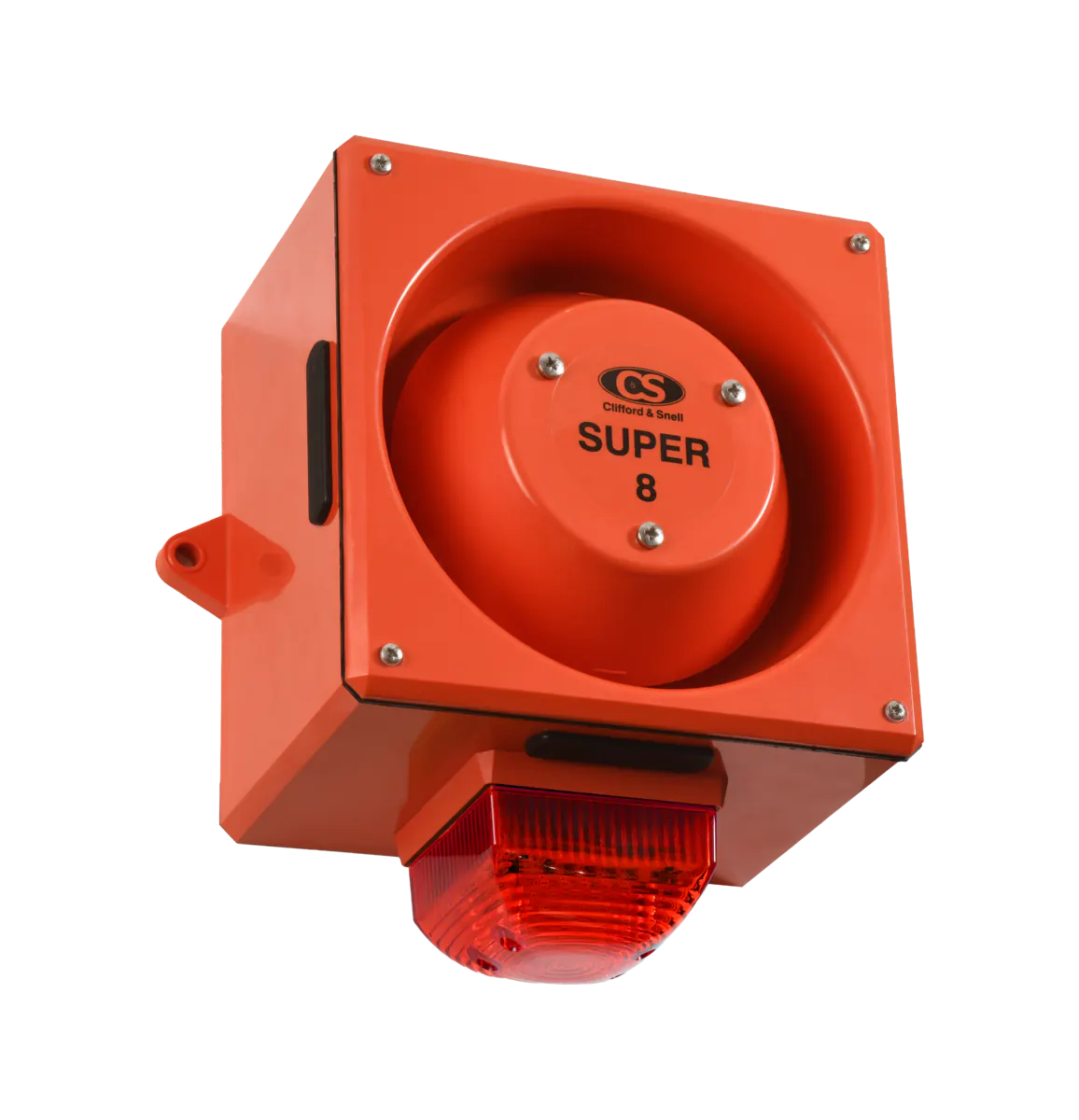

RedYL80/D50/R/RF/SU/WR2046953.210
GreenYL80/D50/G/RF/SU/WR 2120833.210
OpalYL80/D50/O/RF/SU/WR2120843.210

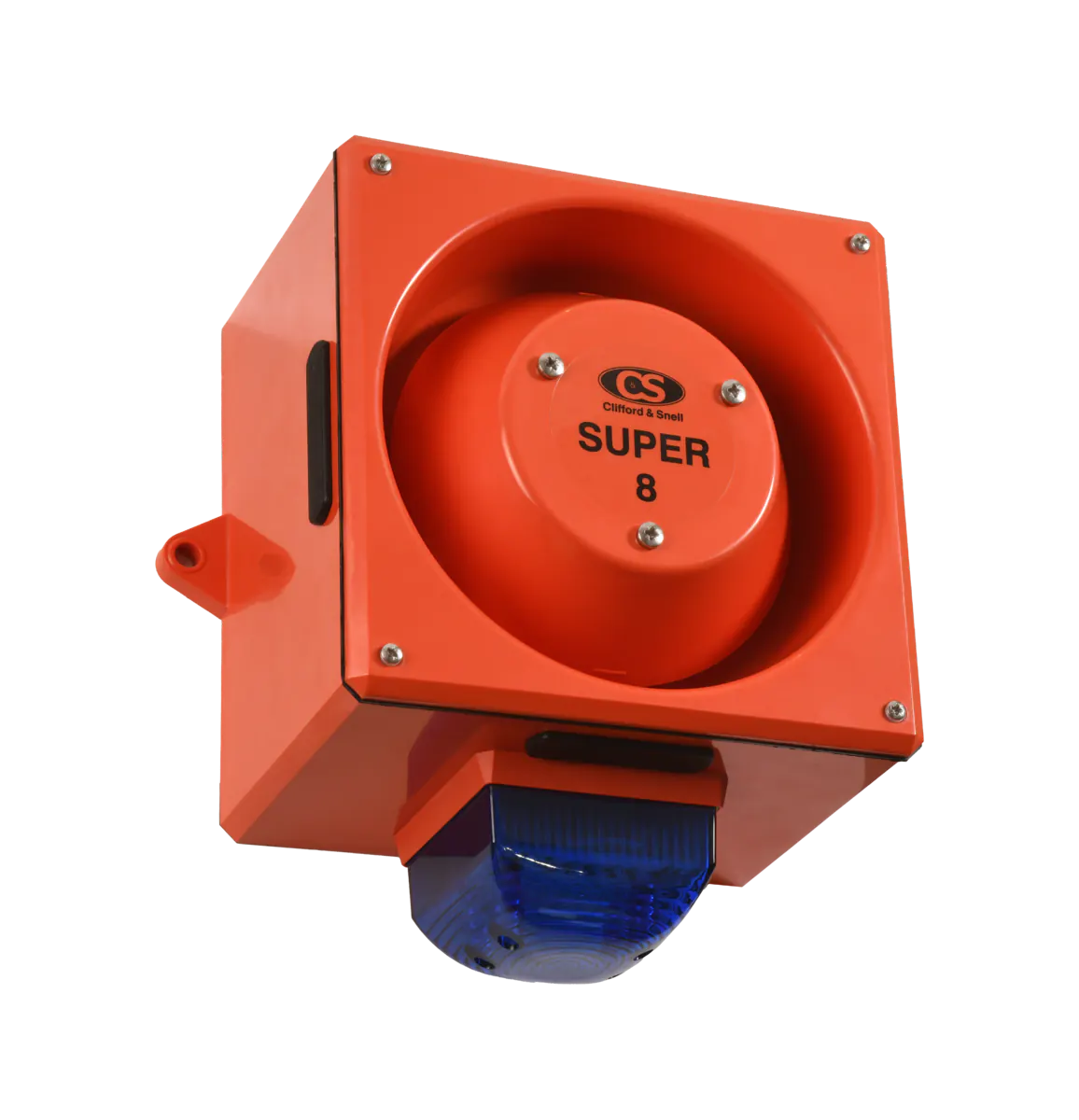

BlueYL80/D50/B/RF/SU/WR2101823.210
ClearYL80/D50/C/RF/SU/WR2120853.210
48vDC ---AmberYL80/F50/A/RF/SU/WR2431703.210
RedYL80/F50/R/RF/SU/WR2140433.210
GreenYL80/F50/G/RF/SU/WR3.210
OpalYL80/F50/O/RF/SU/WR3.210
BlueYL80/F50/B/RF/SU/WR3.210
ClearYL80/F50/C/RF/SU/WR3.210
115vAC ~AmberYL80/L50/A/RF/SU/WR2120863.580
RedYL80/L50/R/RF/SU/WR2110333.580
GreenYL80/L50/G/RF/SU/WR2120873.580
OpalYL80/L50/O/RF/SU/WR2120883.580
BlueYL80/L50/B/RF/SU/WR2120283.580
ClearYL80/L50/C/RF/SU/WR2120903.580
230vAC ~AmberYL80/N50/A/RF/SU/WR2047173.580
RedYL80/N50/R/RF/SU/WR2047353.580
GreenYL80/N50/G/RF/SU/WR2120913.580
OpalYL80/N50/O/RF/SU/WR2120923.580
BlueYL80/N50/B/RF/SU/WR2054583.580
ClearYL80/N50/C/RF/SU/WR2123653.580

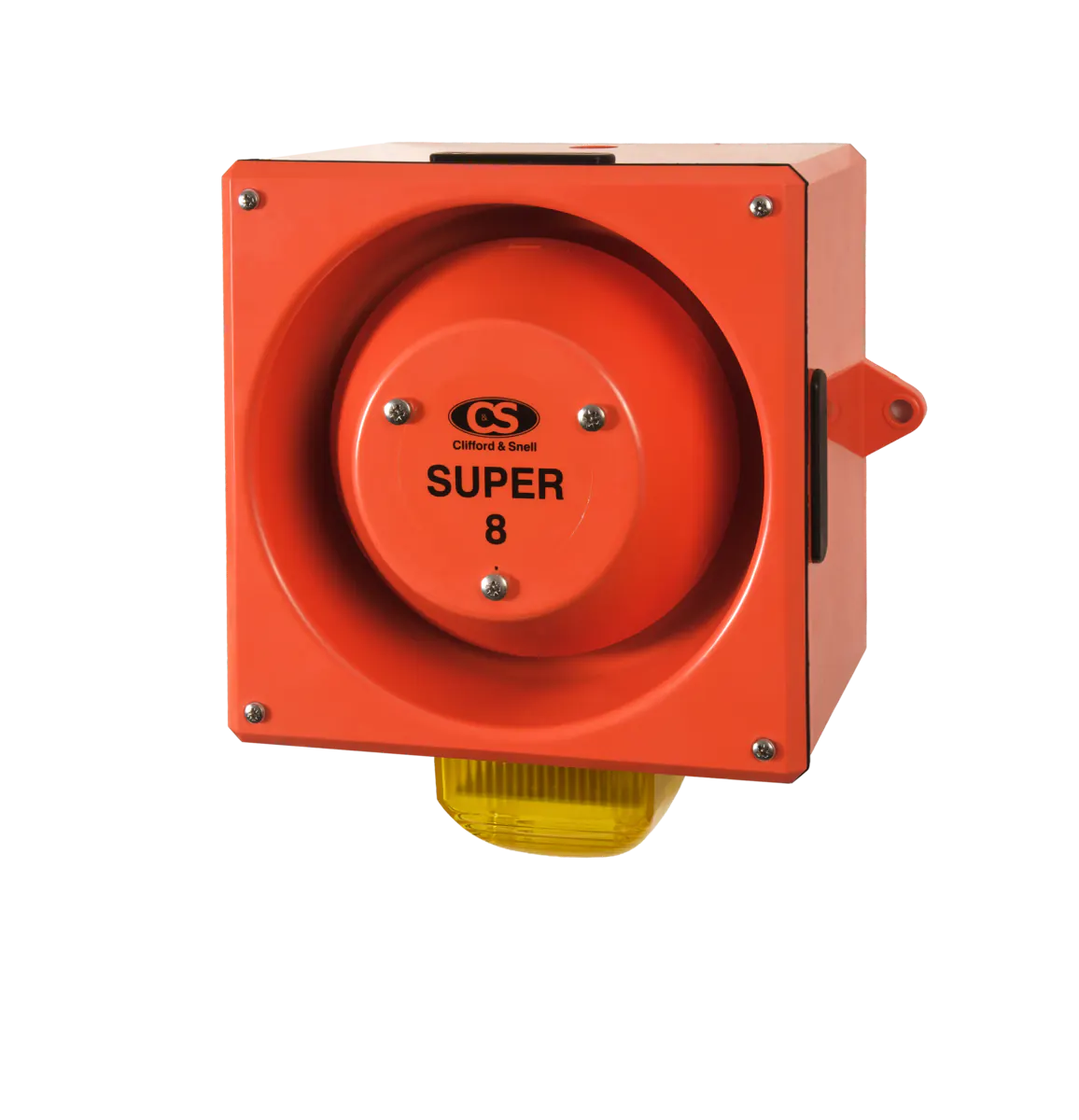

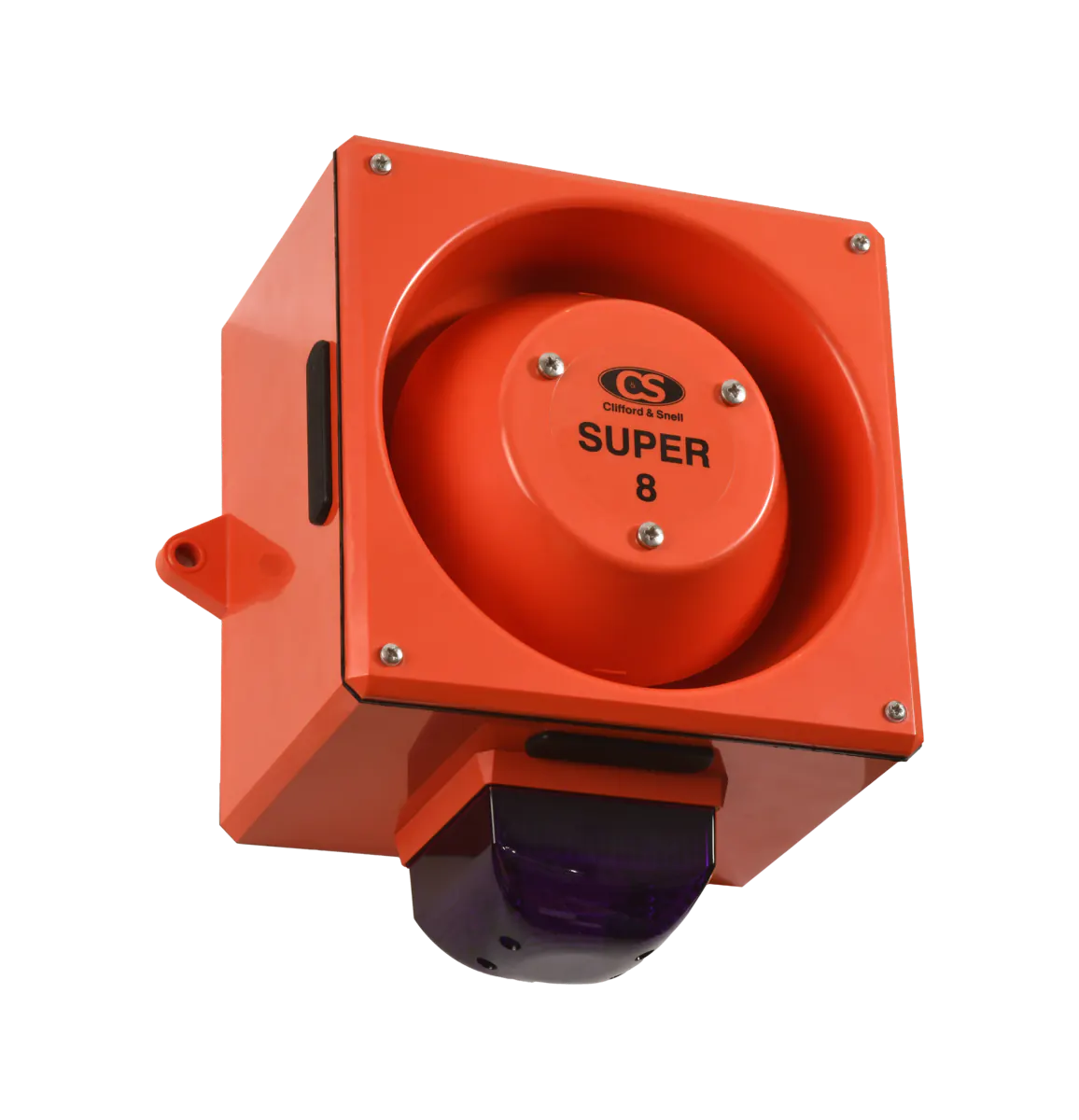

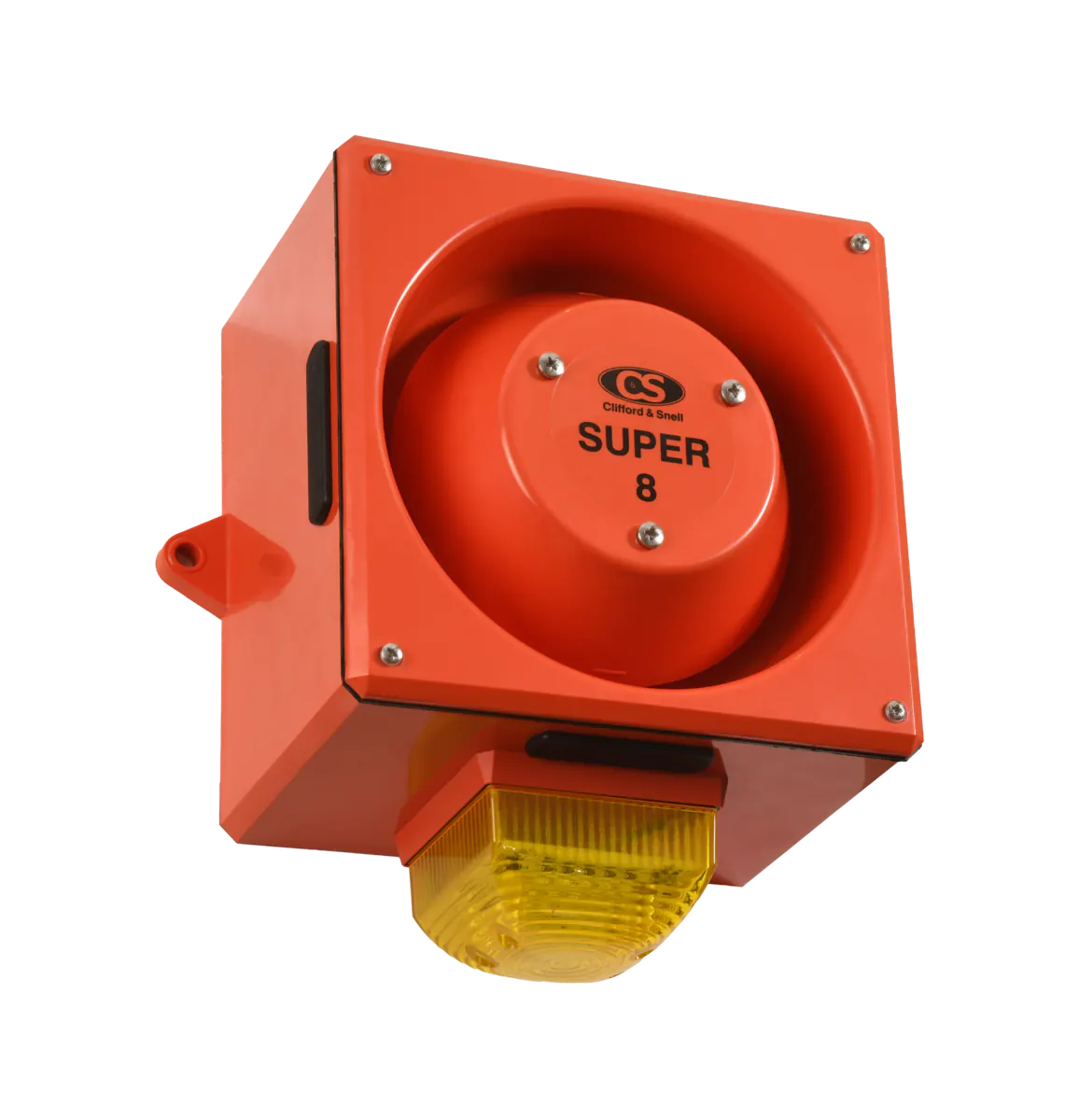

Purple (Magenta) & Yellow Beacon Lenses available upon request
YL80 Super Technical Diagram

Brand

Clifford & Snell

Clifford & Snell Logo

Additional information

Application

Fire, Industrial, Marine

Beacon Output

Flashing

Current Type

AC, DC

dB

>110dB

Enclosure Colour

Red

AC Voltage Frequency

50/60 Hz

IP Rating

IP 66

Lens Colour

Amber, Blue, Clear, Green, Opal, Red

Light Source

Xenon

Material

Fire Retardent PC/ABS

FPM

FPM 60

Maximum Temperature

+55 °C

Minimum Temperature

-25 °C

Nominal Supply Voltage

24v, 115v, 230v

Number of Tones

32

Power Rating

Close Proximity Signalling

Certification

Kite Mark
