Features
- Continuously rated
- Flashing or Static
- Low current consumption
- Suitable for surface or wall mounting
- 120° light output above the vertical axis
- Available in 20-30vAC/DC and 85-280vAC/DC
Material
UV Stable Polycarbonate Lens UL94 HB
UV Stable Polycarbonate Base 746C 5”
Approvals & Conformities
Categories in this range.
Description

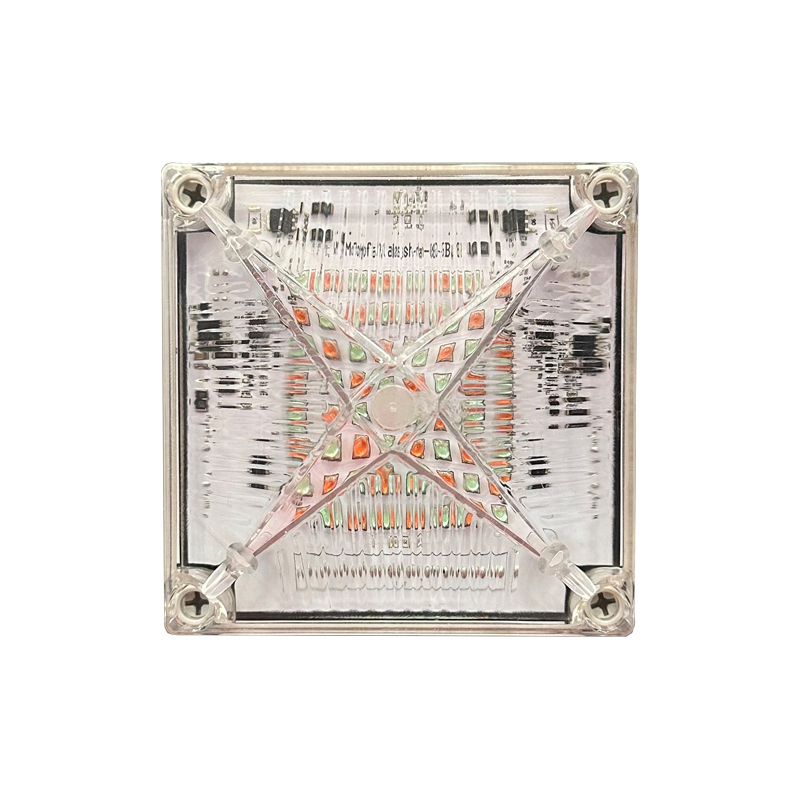

LED701/700 Dual Colour Series
Industrial & Marine LED Beacons
The LED701/700 Dual Colour series is suitable for Industrial & Marine signalling applications where a more powerful visual signal is required. The unit incorporates 64 extra bright, long life LED’s, offering a high output, low maintenance signalling solution. The Beacon has the added benefit that it is manufactured to incorporate 2 different colours within a single unit (32 LEDs of each colour), that can be controlled independently. This gives the added flexibility of incorporating 2 signals into one single high IP rated enclosure.
These Beacons have two selectable output signal modes:
• Static mode
• Flashing mode : 60 or 120 FPM

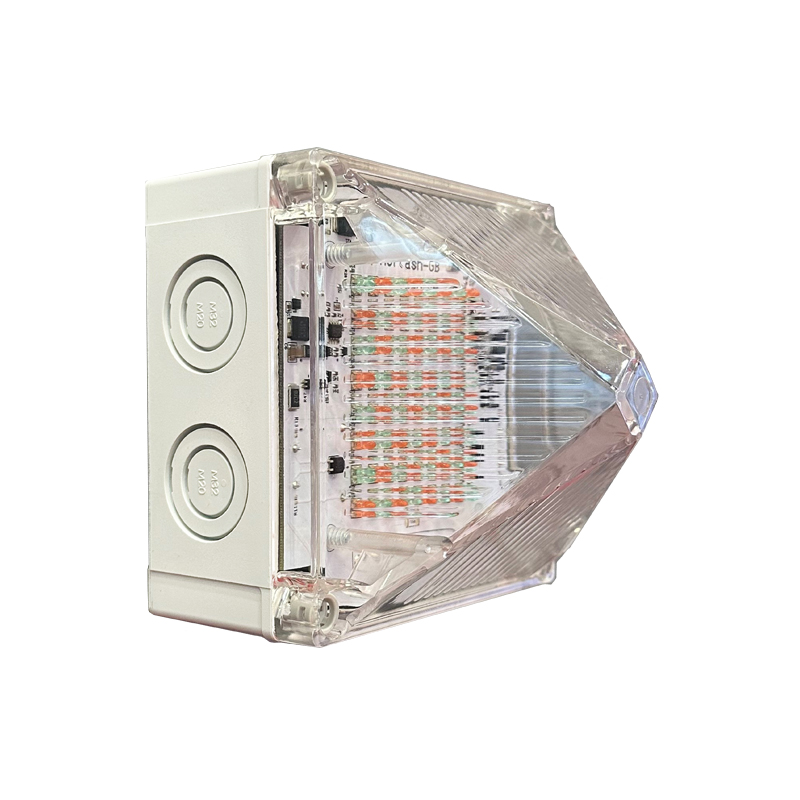

These can be pre-set by a switch on the PCB. The design allows for a third wire control that can switch from continuous mode to pre-set flashing mode. Termination is inside the enclosure via conduit knockouts on the sides of the unit and can incorporate M16 up to M32 cable glands.
| Voltage | Ordering Information | Mode & Current consumption * |
|||
| Voltage Range | Red | Green | Flashing @60FPM | Flashing @120FPM | Static |
| 20-30vAC/DC | LED701-02-02-04 | 134mA @24vDC | 134mA @24vDC | 239mA @24vDC | |
| 85-280vAC/DC | LED700-05-02-04 | 38mA @230vAC | 38mA @230vAC | 54mA @230vAC | |
| Current Consumption combines the operation for both colours | |||||
Additional information
| Lens Colour | Clear |
|---|---|
| IP Rating | IP 66, IP 67 |
| Maximum Temperature | +55 °C |
| Minimum Temperature | -25 °C |
| Application | Industrial, Marine |
| FPM | FPM 120, FPM 60 |
| AC Voltage Frequency | 50/60 Hz |
| Nominal Supply Voltage | 230v |
| Light Source | LED |
| Material | UV Stable PC |
| Beacon Output | Flashing, Static/Steady |
| Current Type | AC, AC/DC, DC |
| Power Rating | Long Distance Signalling |
| Enclosure Colour | White |
Brand
Moflash
