Features

  • Continuously rated
  • LED long life & extra bright
  • Low current consumption
  • Suitable for conduit box or wall mounting
  • 120° prime light output above the vertical axis
  • Multiple modular construction option
  • 1, 2 or 3 bracket mounting option
  • Dustproof and Weatherproof

Material

UV Stable ABS Plastic Base
UV Stable Polycarbonate Lens & Shroud

Approvals & Conformities

Approvals & Conformities
Categories in this range.

Description

LED TL Series (Surface Mount) / KMLED TRAFIC

Industrial LED Traffic Light

The LED-TL Series (Surface Mount) Traffic Light has been designed for industrial & commercial applications where a low maintenance, long life & cost effective solution for car park management, factory traffic control & automated gate & door control systems is required.

The traffic light units are suitable for indoor or outdoor applications and incorporate 36 high output LEDs. They can be surface mounted onto any flat vertical surface or conduit box and used as a stand-alone module. Alternatively, the modular design of the traffic light allows for multiple units to be pre-assembled by the installer to create a multiple indication light system. Each unit comes supplied as standard with all components required for multiple assembly for surface mount installation.

These units require external input signals or PLC control to switch visual indication functions (not supplied). However, the amber light incorporates an optional jumper link on the PCB that allows the unit to flash once energised.

Cable termination is inside the enclosure and can be accessed via either the 2 x M20 conduit knockouts (top or bottom) or 1 x M20 rear conduit entry.

LED-TL Series - Surface Mount

Code NoKM CodeVoltageLight SourceCurrent
LED-TL-016980x8-20v Ac/Dc ≂36 SMT LEDs240mA @ 12v Dc
LED-TL-026981x20-30v Ac/Dc ≂36 SMT LEDs120mA @ 24v Dc
LED-TL-036982x35-85v Ac/Dc ≂36 SMT LEDs76mA @ 48v Dc
LED-TL-056983x85-380v Dc --- 36 SMT LEDs35mA @ 230v Ac
85-280v Ac ~

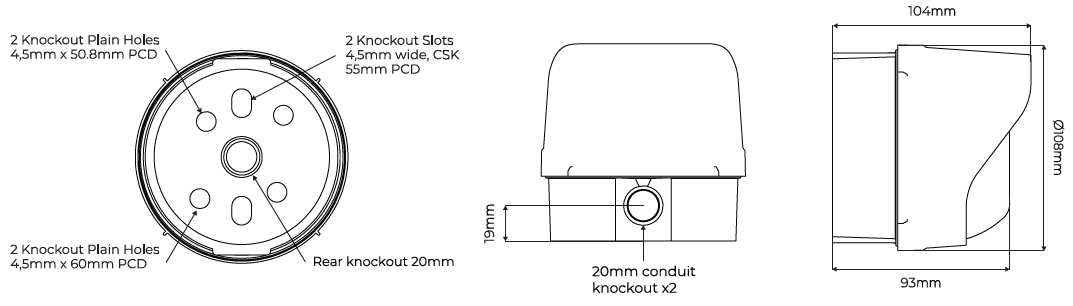

LED TL Series - Surface Mount Industrial LED Traffic Light - Technical Drawing - Side
LED TL Series - Surface Mount Industrial LED Traffic Light - Technical Drawing - Rear
LED TL Series - Surface Mount Industrial LED Traffic Light - Technical Drawing - Base

Brand

Moflash

Moflash Logo

Additional information

Lens Colour

Amber, Green, Red

IP Rating

IP 65

Maximum Temperature

+55 °C

Minimum Temperature

-25 °C

Application

Industrial, Traffic Management

AC Voltage Frequency

50/60 Hz

Nominal Supply Voltage

12v, 24v, 48v, 115/230v

Light Source

LED

Material

ABS, UV Stable PC

Beacon Output

Flashing, Static/Steady

Current Type

AC, AC/DC, DC

Power Rating

Medium Proximity Signalling
