Features

  • Approved by ATEX, IECEx
  • CQST (Available on request only)
  • ATEX: II 2G Exd IIC T4 – T6 (Incorporating IIA & IIB)
  • Zones 1, 2, 21 & 22
  • Conforms to EN (IEC) 60079-0, EN (IEC) 60079-1 and EN54
  • Dustproof & Weatherproof

Material

Enclosure: GRP (Glass Reinforced Plastic)

Approvals & Conformities

ATEX IECEx
Approvals & Conformities
Categories in this range.

Description

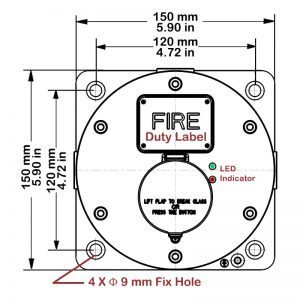

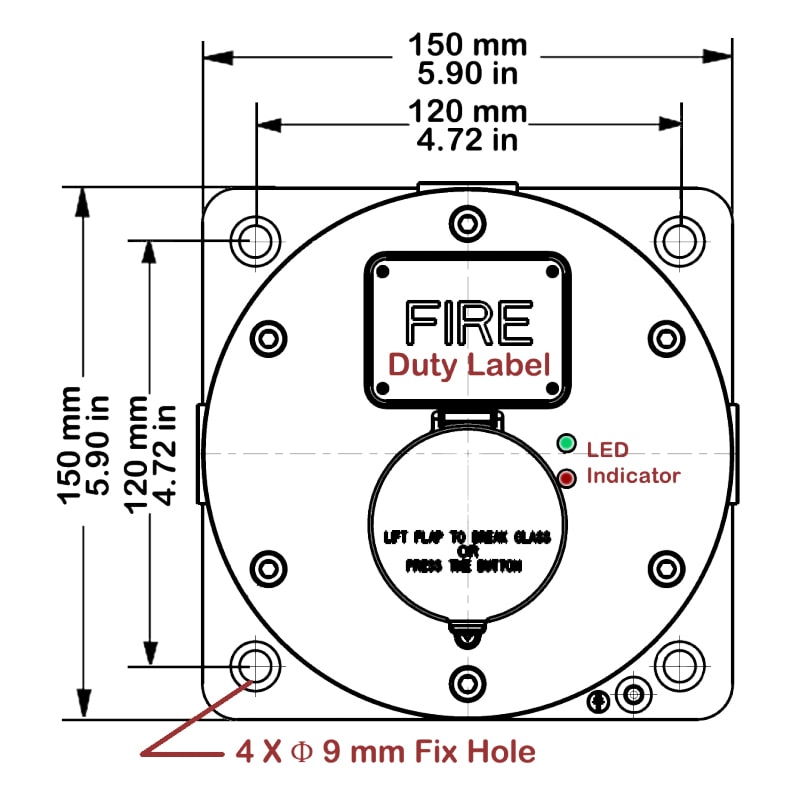

CP150 Series

Explosion Proof Manual Call Point (GRP)

GRP: Glass Reinforced Plastic

The CP150 manual call point range has been approved for use in potentially explosive atmospheres and harsh environmental conditions.

Typical applications are Oil and Gas, On-shore and Offshore, Chemical, Petrochemical, Refineries & Marine locations etc.

It is compatible for use with a PLC, DCS and ESD systems via 4-20mA output. It is ideally suited for use in fire alarm systems and an addressable option with diode fitted is available.

The range also offers an additional visual LED indication option; red, green (or both) can be fitted. When fault or alarm status arises the green LED will be overridden by the red LED.

The design allows for termination inside the unit.

Additional information

Enclosure Colour

Black, Blue, Red, Yellow

IP Rating

IP 66

Maximum Temperature

+70 °C

Minimum Temperature

-40 °C

Application

Chemical, Fire, Hazardous Area, Industrial, Marine, Oil & Gas, Onshore & Offshore, Petrochemical, Refineries

Material

GRP (Glass Reinforced Plastic)

Certification

ATEX, CQST (Available on request only), IECEx

Zones

Zone 1, Zone 2, Zone 21, Zone 22
