CP135 – Explosion Proof GRP Manual Call Point

Functionality: Break Glass
Type of fixing: Surface Mounting
Ingress protection: IP66 / IP67
Housing material: GRP (Glass-Reinforced Polyester)

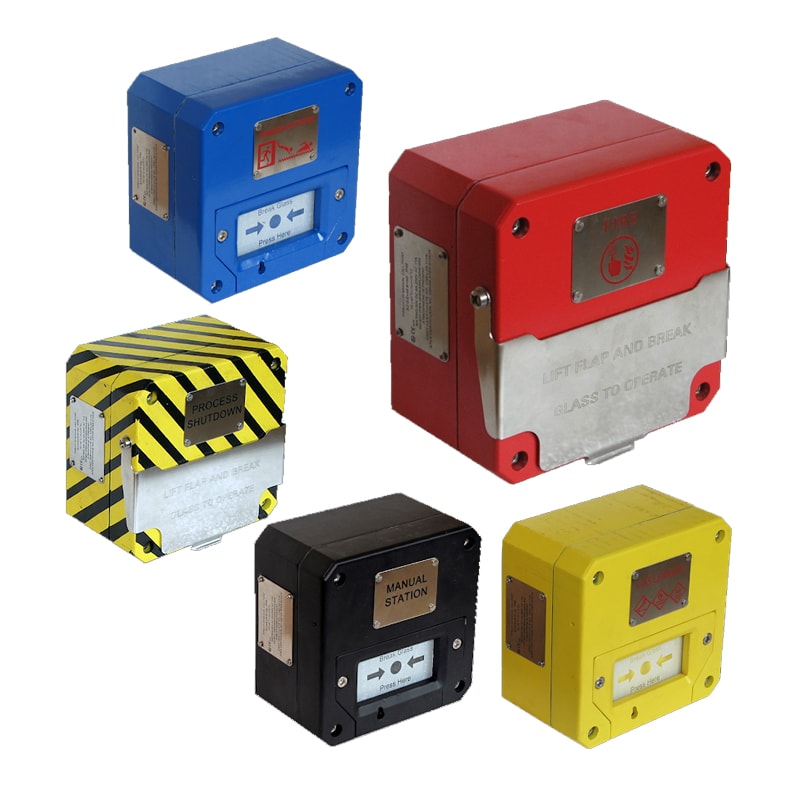

Enclosure colour: Red, Yellow, Blue, Black, Other on Request
Contact rating: 250vAC 11A, 30vDC 6A
Zone ATEX: Gas 1, 2 | Dust 21, 22

IMPORTANT! This product is built to order. Please complete the model configurator in the datasheet and send us the resulting product code so we can provide a quote. Every configuration is confirmed by our team before an order can be placed.

Request a quote

CP135 — Explosion Proof GRP Manual Call Point

The CP135 is a flameproof break-glass manual call point for potentially explosive atmospheres. ATEX and IECEx certified for gas and dust zones and SIL2 compliant, it triggers fire alarms and emergency alerts and interfaces with PLC, ESD or DCS systems.

The Glass-Reinforced Polyester housing with a UV-resistant coating suits corrosive and hazardous areas. The unit is supplied with a hammer and securing chain, and can be ordered with one or two changeover contacts. Optional LED indication, line detection and glass protection extend monitoring and safety. Ambient range is −40°C to +70°C.

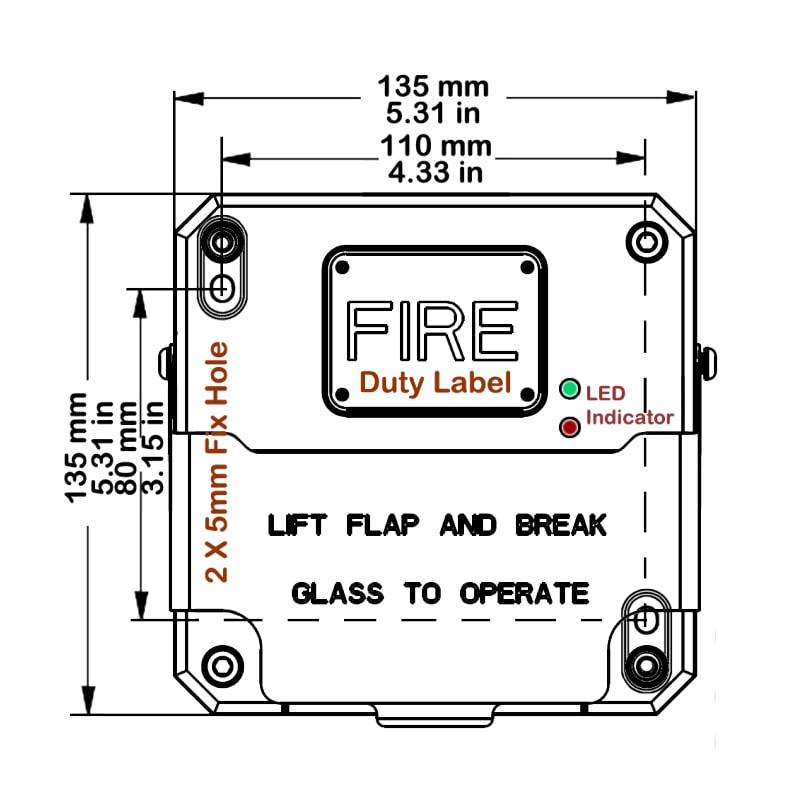

Compact 135 × 135 mm flat-format enclosure with top or bottom cable entry. For a 316L stainless steel enclosure, see the CP125.

KEY FEATURES

● 1 or 2 changeover contacts

● Supplied with hammer and chain

● Optional LED indication

● Optional line detection and glass protection

● IP66/67 rated

● Surface or wall mounting

● ATEX & IECEx certified — Zone Gas 1/2 & Dust 21/22

● SIL2 compliant (IEC 61508 / 61511)

● 11A at 125/250vAC, 6A at 30vDC
