Features
- Continuously rated
- Suitable for surface, conduit box or wall mounting
- Wide operating voltage
- Volume control adjustment (-20dB)
- Conforms to EN54-3 Type B for Fire Alarm use (Dc Only)
- Vds & NF approved versions available upon special request only
- Dustproof and Weatherproof
Material
Flame Retardent ABS
Approvals & Conformities
Categories in this range.
Description

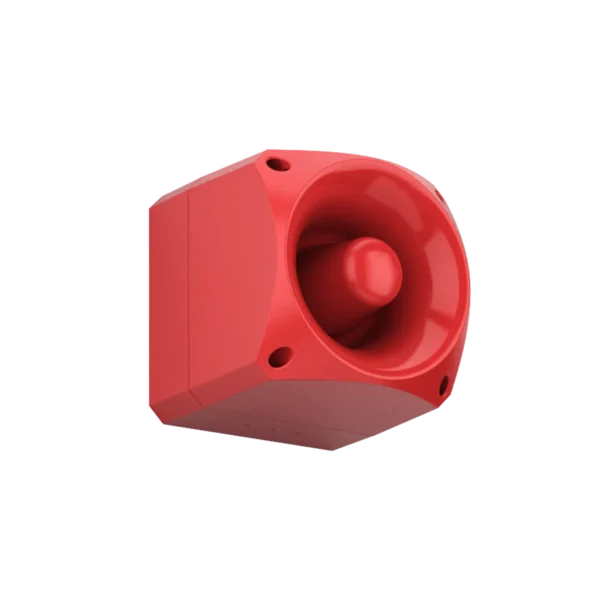

AE105, AE110 & AE120 Nexus / KMALARM 105, 110 & 120
Electronic Sounder
Three Stage Alarm – 64 Selectable Tones
The AE105, 110 & 120 ‘NEXUS’ range of electronic sounders are suitable for a wide range of Fire and Industrial signalling applications where a high degree of signalling versatility is required in the environment.
The 110 & 120 units offer three stage alarm functionality, with all three products having sixty four separate tone options that are automatically synchronised on multi unit installations. These are selectable inside the unit via a six way DIP switch. The range has been designed to allow a ‘first fix’ wiring solution. Connections are made in the base during the initial wiring phase which results in faster and more reliable installations.
The ‘sounder head’ is then fixed into position using four captive quarter turn fasteners, giving accurate seal compression for weatherproofing.
There are five cable entry options allowing for termination inside the enclosure.
AE105, AE110 & AE120 Series
| Code No | KM Code | Voltage | Current | dB at 1m |
|---|---|---|---|---|
| AE105-02MF | 28560 | 10-60v Dc --- | 8-40 mA | 100-113 |
| AE105-04MF | 28561 | 115/230v Ac ~ | 40 mA | 100-113 |
| AE110-02MF | 28570 | 10-60v Dc --- | 10-50 mA | 104-116 |
| AE110-03MF | 28571 | 24-48v Ac ~ | 10-50 mA | 104-116 |
| AE110-04MF | 28572 | 115/230v Ac ~ | 40 mA | 104-116 |
| AE120-02MF | 28580 | 10-60v Dc --- | 120-550 mA | 110-120 |
| AE120-04MF | 28581 | 115/230v Ac ~ | 200 mA (max) | 110-120 |
| Note: Decibels and current are subject to voltage and tone selected | ||||
AE105, AE110 & AE120 Series - Dimensions (mm)
| REF | 105 | 110 & 120 |
| A | 136.2 | 166.3 |
| B | 124.5 | 149.5 |
| C | 35.0 | 38.6 |
| D | 118.0 | 99.5 |
| E | 76.5 | 145.0 |
| F | 5.0 | 6.0 |
| No. | Tones | No. | Tones |
|---|---|---|---|
| 1 | 33 | ||
| 2 | 34 | ||
| 3 | 35 | ||
| 4 | 36 | ||
| 5 | 37 | ||
| 6 | 38 | ||
| 7 | 39 | ||
| 8 | 40 | ||
| 9 | 41 | ||
| 10 | 42 | ||
| 11 | 43 | ||
| 12 | 44 | ||
| 13 | 45 | ||
| 14 | 46 | ||
| 15 | 47 | ||
| 16 | 48 | ||
| 17 | 49 | ||
| 18 | 50 | ||
| 19 | 51 | ||
| 20 | 52 | ||
| 21 | 53 | ||
| 22 | 54 | ||
| 23 | 55 | ||
| 24 | 56 | ||
| 25 | 57 | ||
| 26 | 58 | ||
| 27 | 59 | ||
| 28 | 60 | ||
| 29 | 61 | ||
| 30 | 62 | ||
| 31 | 63 | ||
| 32 | 64 |
Additional information
| Enclosure Colour | Red |
|---|---|
| IP Rating | IP 66 |
| Maximum Temperature | +55 °C, +70 °C |
| Minimum Temperature | -25 °C |
| Application | Fire, Industrial, Marine |
| AC Voltage Frequency | 50/60 Hz |
| dB | >110dB |
| Nominal Supply Voltage | 12-48v, 24v, 48v, 115/230v |
| Material | Fire Retardent PC/ABS |
| Current Type | AC, DC |
| Number of Tones | 64 |
