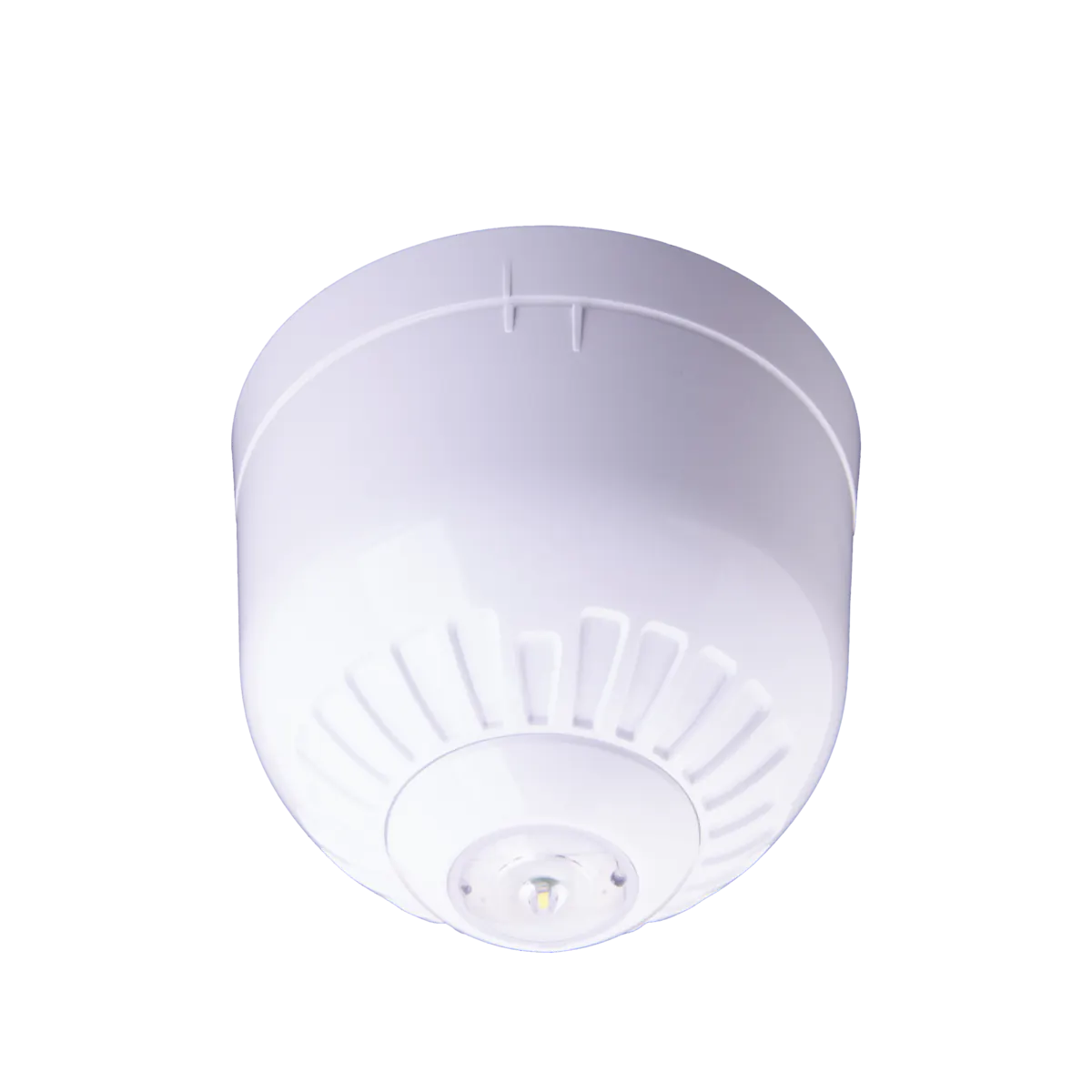

Sonos Pulse Ceiling — Ceiling Beacon

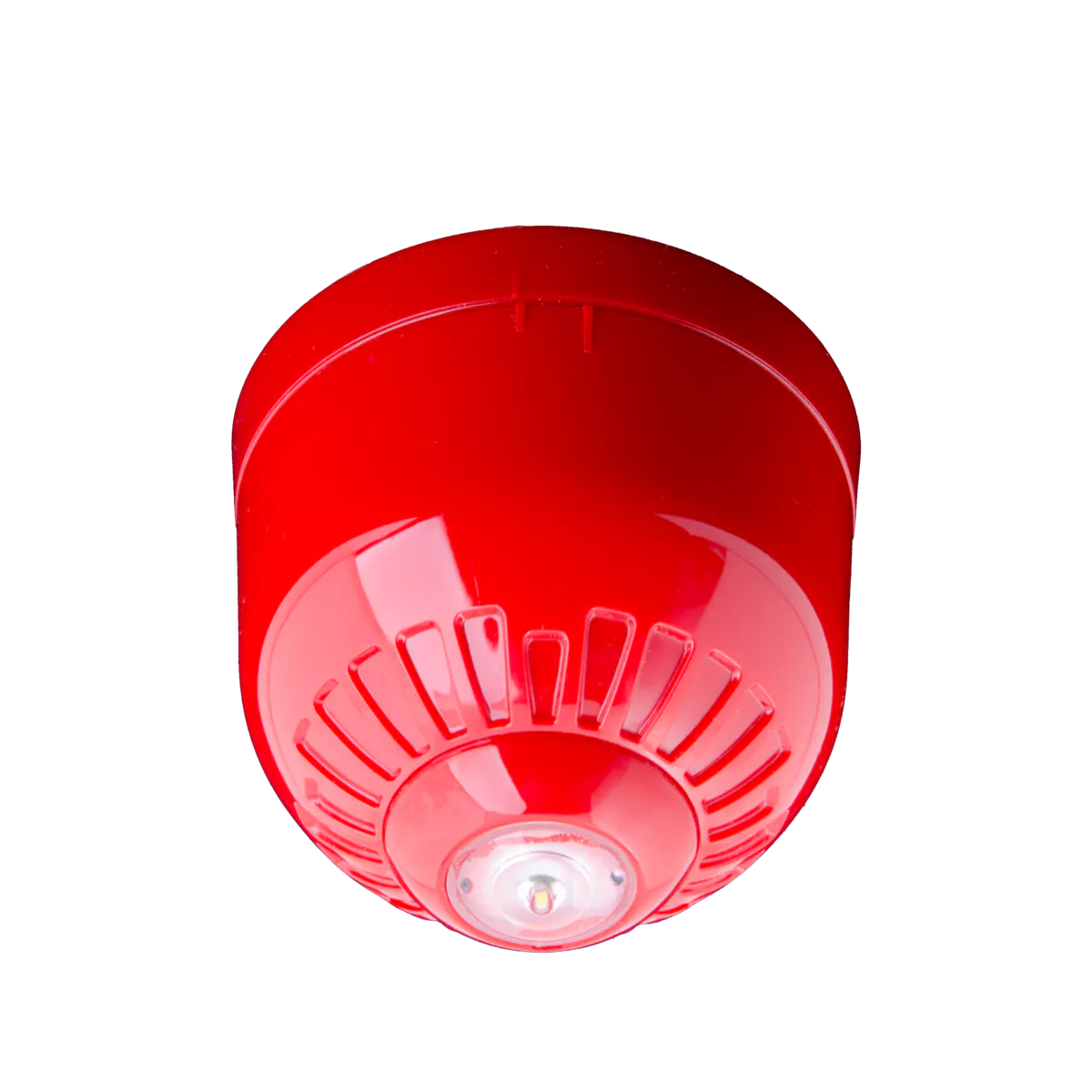

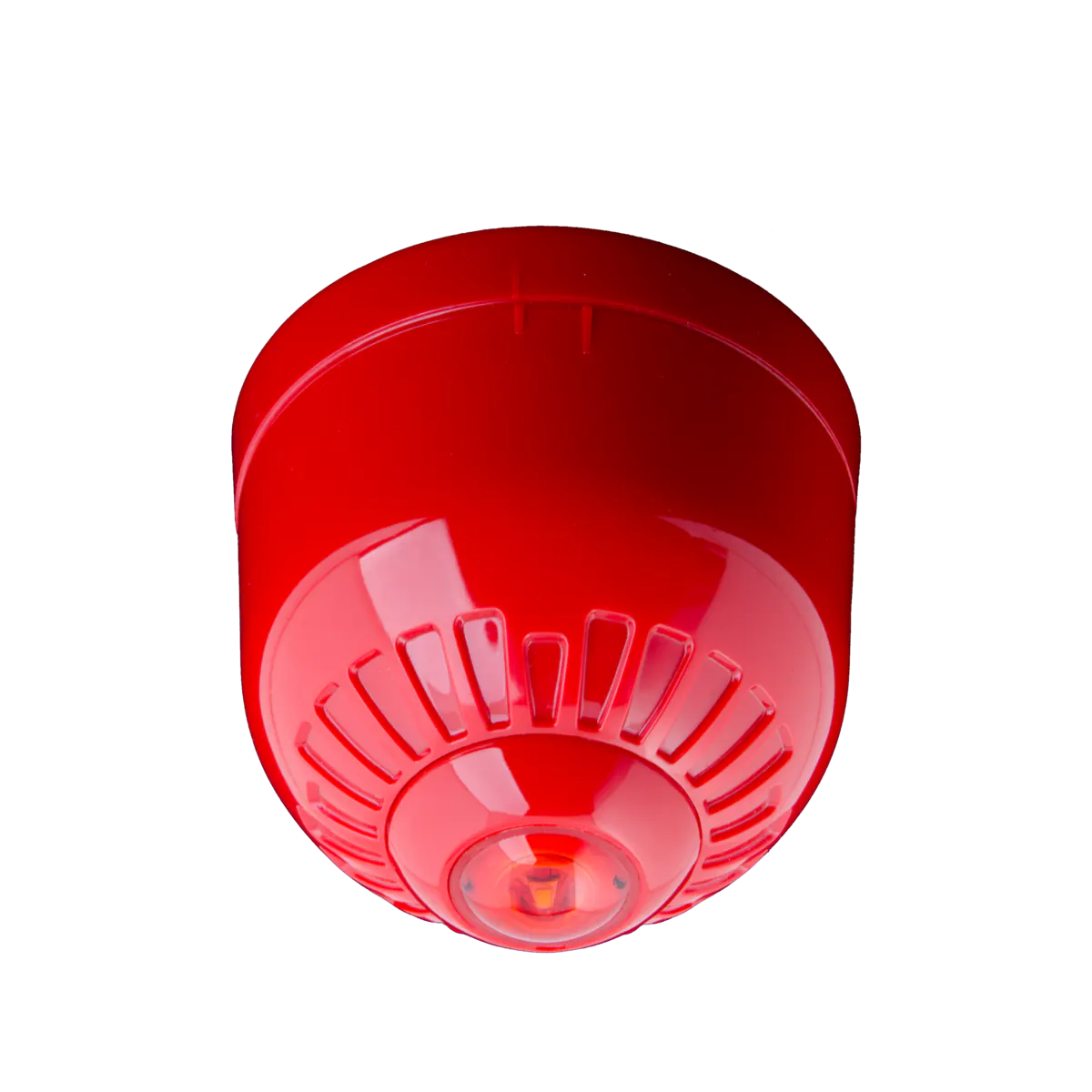

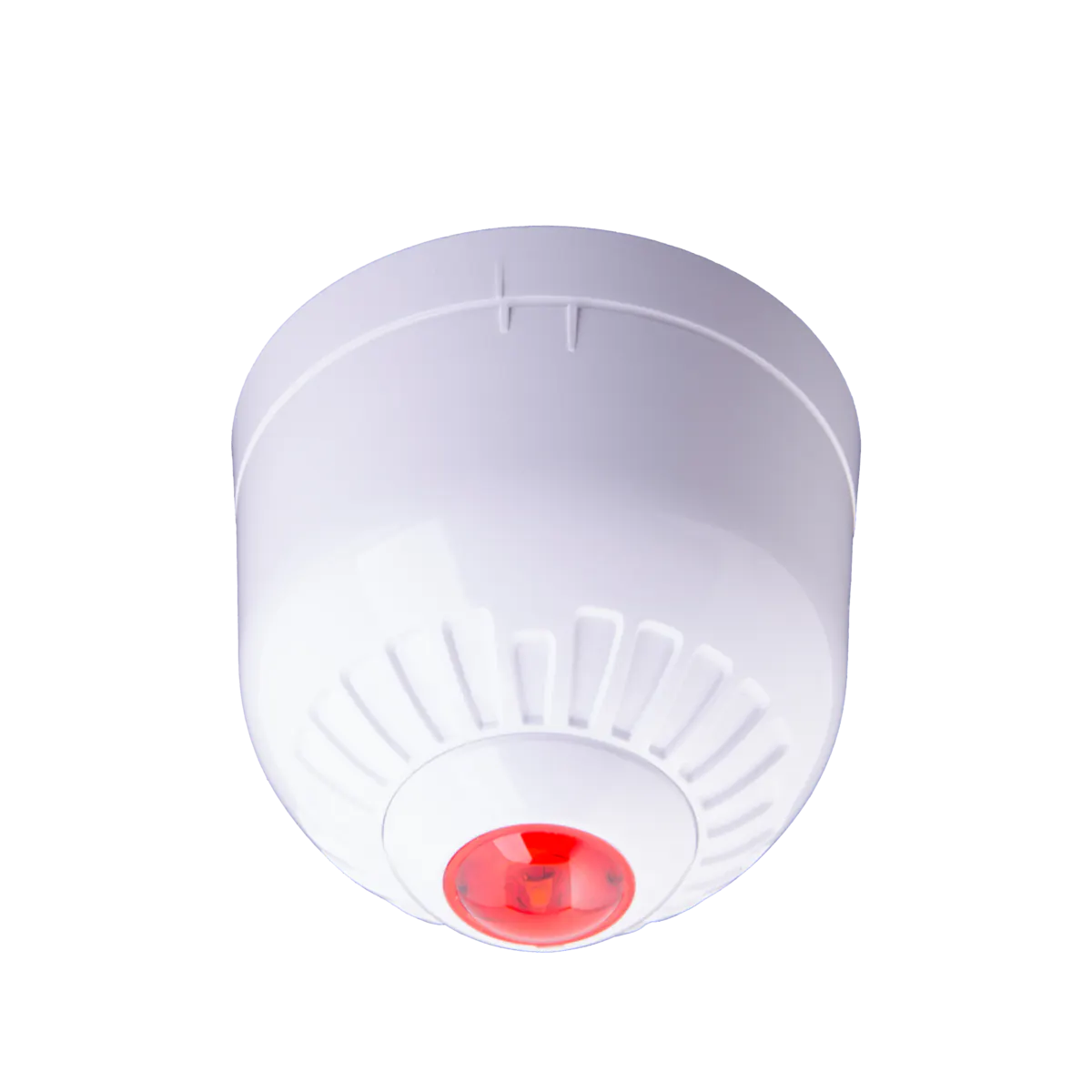

The Sonos Pulse Ceiling beacon is an EN54-23 certified visual alarm device designed for ceiling-mounted fire signalling, using Pulse Alert Technology to exceed standard device classifications. The choice of a White or Red flash determines the coverage: White gives EN54-23 coverage C-3-15, whilst Red gives C-3-8.9, for room or zone coverage from above.

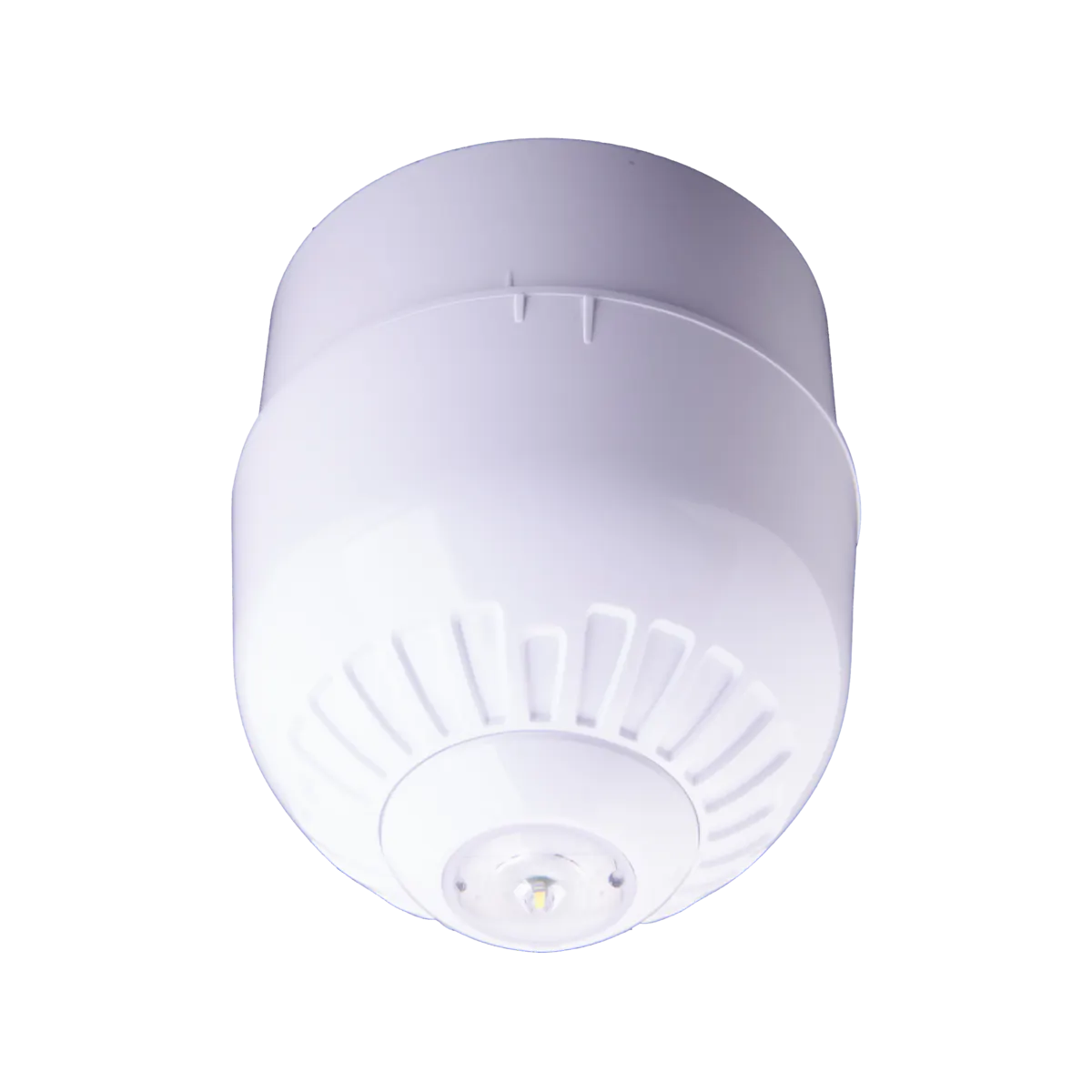

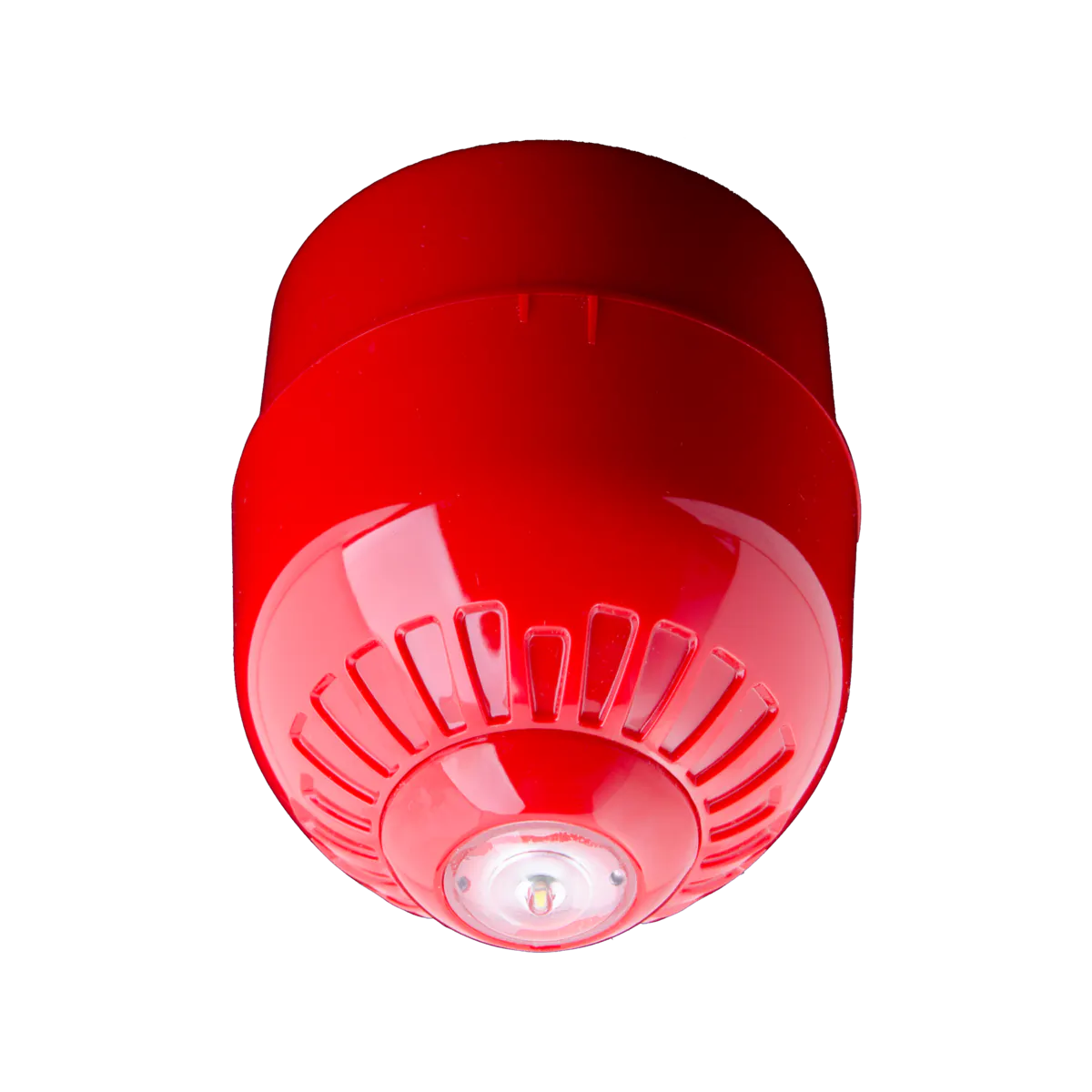

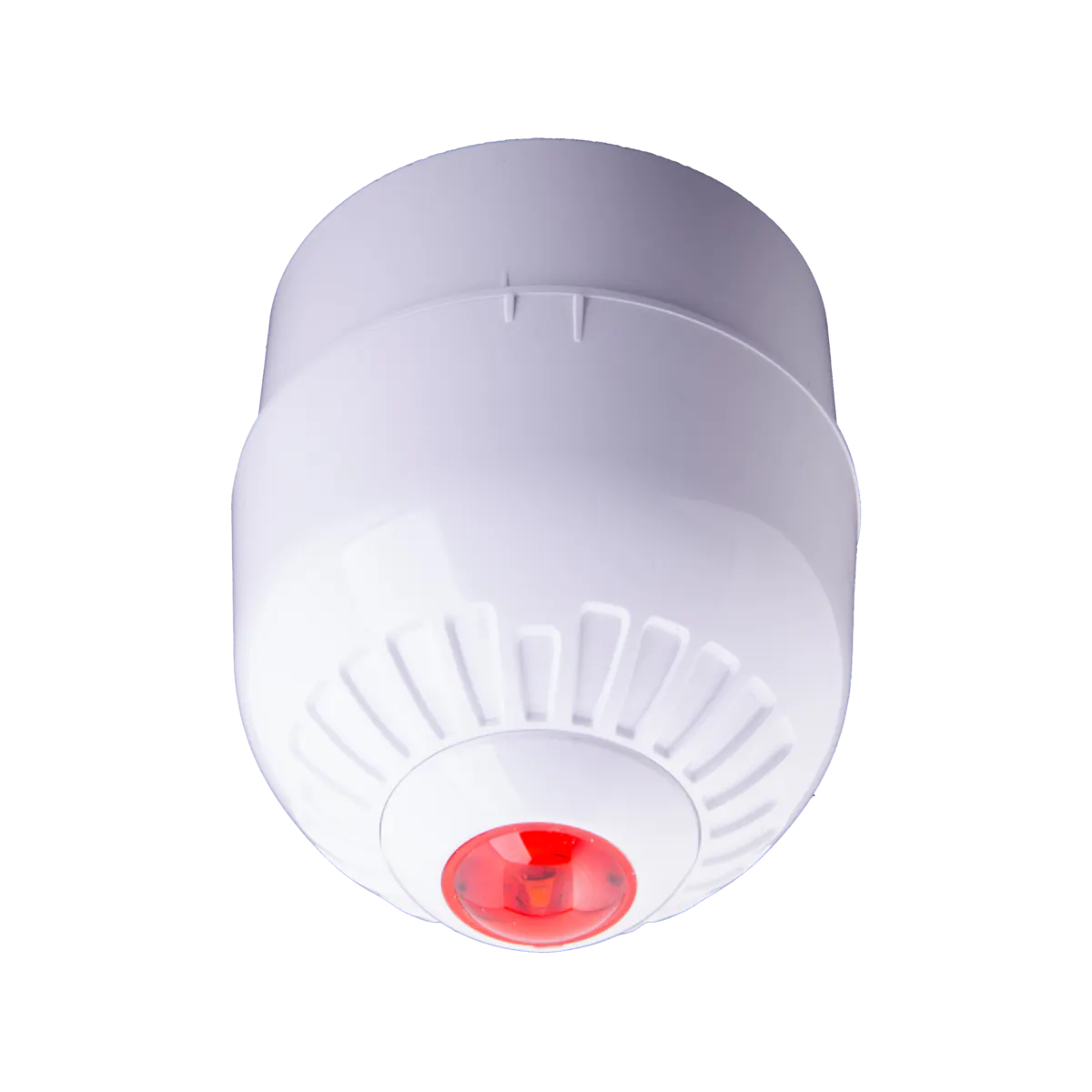

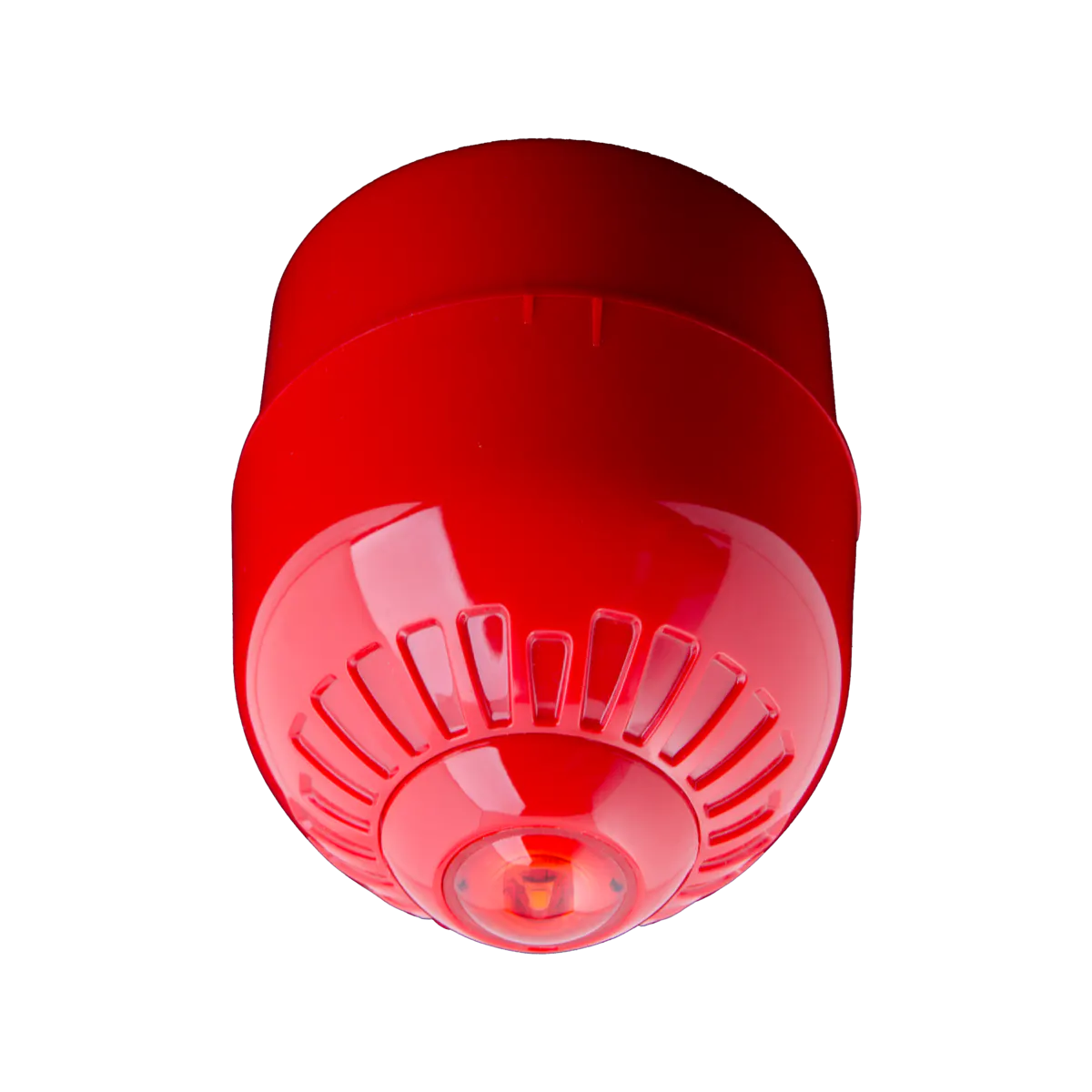

A selectable flash rate dictates current draw, and Shallow or Deep Base selection sets the ingress-protection level. Synchronised flashing with no surge current and a simple wire-to-base upgrade make installation efficient.
Certified ceiling coverage you can calculate, not estimate.
KEY FEATURES
● Flashing
● No surge current
● Shallow/deep base sets IP
● IP21 or IP33 rated
● Ceiling mounting
● EN54-3 approved
● Available colours: Red, White
● 17-60vDC
MATERIALS
● ABS body
Typical applications: fire alarm systems, offices, retail, hotels, public buildings.
